Products
Tesla Magnetics Inc., offers magnetics for LAN, telecommunications, WiFi, RF and power applications. We offer standard and custom magnetics solutions. The products we offer include RJ45 filtered connectors, LAN transformers and filters, PoE and SMPS transformers, xDSL for broadband access, telecom transformers, shielded and unshielded power inductor, chip inductors, chip beads and chip beads arrays for wide variety of electronic applications.
Gigabit RJ45 Filtered Connectors
Products Details
RJ45 single or multiple ports for 10/100Base-Tx and Gigabit with or without LED, tabs up and down
Product PDF:
[Open]
[Download]
TJ2000 100Base-Tx
Products Details
Complies with IEEE 802.3
Various turn ratios available
Isolation voltage of 1500Vrms
Different LEDs colors options available
Contact: Phosphor Bronze, 6 -inch gold flashed
Different metal shielding nickel plated options available
Housing: Thermoplastic UL94V0 rated
Operating temperature: 0°C to +70°C
Storage temperature: -40°C to +85°C
Product PDF: [Open][Download]
TJ3001 Dual Gigabit
Products Details
TE2000 100Base Single
Products Details
Single Port 10/100Base-TX Transformer
IC grade transfer-molded package withstands
235°C peak temperature profile
Compliant with IEEE 802.3u and ANSI X3.263
standards including 350 H OCL with 8mA bias
from 0°C to 70°C
Product PDF: [Open][Download]
TE2001 100Base Low Profile
Products Details
10/100Base-Tx Single Port Transformer
Optimized for leading IC manufacturers per IEEE 802.3, 10/100Base-Tx Standard
350 μH with 8 mA DC bias
Operating Temperature: 0°C - 70°C
Product PDF: [Open][Download]
TE2003 100Base Low Profile
Products Details
10/100Base-Tx Single Port Transformer
Optimized for leading IC manufacturers per IEEE 802.3 Standard
350 μH with 8 mA DC bias
Operating Temperature: 0°C - 70°C
Product PDF: [Open][Download]
TE2006 100Base SOIC
Products Details
Optimized for leading IC manufacturers per IEEE 802.3 Gigabit Standard
RSH 260°C for 10 seconds with reflow rating of 245°C
Operating Temperature: 0°C - 70°C
Product PDF: [Open][Download]
TE3000 Gigabit
Products Details
Optimized for leading IC manufacturers per IEEE 802.3 Gigabit Standard
RSH 260°C for 10 seconds with reflow rating of 245°C
Operating Temperature: 0°C - 70°C
Product PDF: [Open][Download]
TE3001 Gigabit
Products Details
Optimized for leading IC manufacturers per IEEE 802.3 Gigabit Standard
RSH 260°C for 10 seconds with reflow rating of 245°C
Operating Temperature: 0°C - 70°C
Product PDF: [Open][Download]
TE3002 Gigabit
Products Details
Optimized for leading IC manufacturers per IEEE 802.3 Standard
RSH 260°C for 10 seconds with reflow rating of 245°C
Operating Temperature: 0°C - 70°C
Product PDF: [Open][Download]
TE3003 Gigabit Dual
Products Details
Optimized for leading IC manufacturers per IEEE 802.3 10Gbit Standard
RSH 260°C for 10 seconds with reflow rating of 245°C
Operating Temperature: 0°C - 70°C
Product PDF: [Open][Download]
TE4000 10Gigabit
Products Details
Optimized for leading IC manufacturers per IEEE 802.3 10Gbit Standard
RSH 260°C for 10 seconds with reflow rating of 245°C
Operating Temperature: 0°C - 70°C
Product PDF: [Open][Download]
TD2000
Products Details
Optimized with Conexant chipset for CPE application
EP 13 Transformer
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD2001
Products Details
Optimized with Conexant chipset for CPE application
EP 13 Transformer
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD2002
Products Details
Optimized with Conexant chipset for CPE application
EP 13 Transformer
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD2003
Products Details
ADSL Transformer TD2003
Texas Instruments Chip
EP 13 transformer
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD2004
Products Details
ADSL Transformer TD2003
Analog Device AD20MSP930 Chip
EP 13 transformer
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD2005
Products Details
ADSL Transformer TD2003
Analog Device AD20MSP930 Chip
EP 13 transformer
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TT3000-TT3004
Products Details
ISDN Transformer
Optimized for use in T3/DS3, E3 and STS-1 applications
Operating temperature - 40°C to + 85°C
Dual transformer in small foot print
Product PDF: [Open][Download]
TT3005
Products Details
ISDN Transformer
· Optimized for use in T3/DS3, E3, and STS-1 applications
· Operating temperature - 40°C to + 85°C
· Dual transformers in small foot print
Product PDF: [Open][Download]

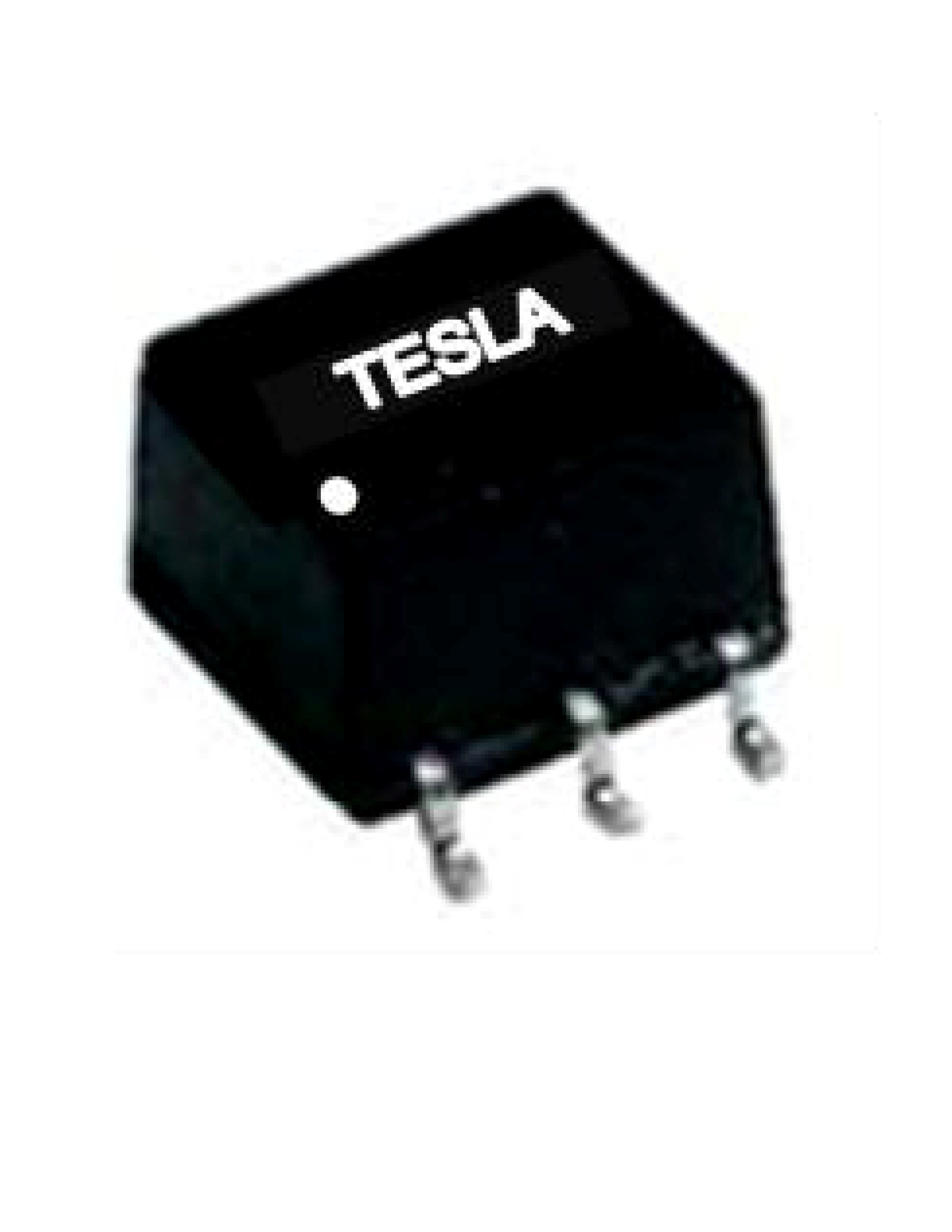

TT3006- TT3011
Products Details
ISDN Transformer
Optimized to use in T3/DS3, E3 and STS-1 applications
Operating temperature - 40°C to + 85°C
Dual transformer in small foot print
Product PDF: [Open][Download]
PoE/VoIP
Products Details
6.6 Watts PoE/VoIP Transformer
Input Voltage: 36-57V
Output Voltage: 3.3V
Per IEEE802.3af
Switching Frequency: 400kHz
Product PDF: [Open][Download]
TX3000 Flyback
Products Details
FLYBACK TRANSFORMER
Features:
Operating temperature:- 40°C to +85°C
Storage temperature: -40°C to +125°C
Good resistance to solder heat,
Product PDF: [Open][Download]
TX3002 Flyback
Products Details
HIGH FREQUENCY TRANSFORMER
Features:
Total Power: 6.6W
Output VA: 3.3V/2A
Operating temperature:- 40°C to +85°C
Storage Temperature: -40° C to +125°C
Product PDF: [Open][Download]
TP1000
Products Details
Power LAN Transformer:
Electrical Specification@25°C
Turn Ratio@10KHz, 0.1V : 1:1 ± 2%
Inductance(Lp):@1KHz,0.1VAC,1-2 & 4-3 : 14.5 mH ±20%
Inductance(Lp):@100KHz,0.1VAC,1-3:52.2 mH Min(short 2-4)
DC Resistance@(25°C): 1-2 & 4-3 : 1.90Ω Nom
Hi-Pot: 500VDC, 1mA ,1Sec, Winding to winding, All Winding to Core
Product PDF: [Open][Download]
TX7000
Products Details
Electrical Specifications@25°C
Minimum Inductance @1KHz, 0.1Vrms:1-3 : 0.24mH
and 8-6 : 2.82mH
DC Resistance(25°C):
1-3: 0.16-0.30Ω , 8-6: 2.50-3.10 Ω
Turns Ratio: 8-6 : 1-3 =34 : 10±2%
Hi-Pot: 500Vrms,1mA, 1 Sec, 8-6 to1-3 & 1-3 to Core
Product PDF: [Open][Download]
TD6000
Products Details
VDSL Transformer TD6000
Excellent longitudinal balance
EP 13 transformer
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD6001
Products Details
VDSL Transformer TD6001
Metalink Chip
EP 13 transformer
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD6002
Products Details
VDSL Transformer TD6002
Metalink Chip
EP 13 transformer
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD6003
Products Details
VDSL Transformer TD6003
Metalink Chip
EP 13 transformer
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD6004
Products Details
VDSL Transformer TD6004
Conexant Chip
EP 10 transformer
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD6005
Products Details
VDSL Transformer TD6005
Conexant Chip
EP 10 transformer
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD6006
Products Details
VDSL Transformer TD6006
Excellent Longitudinal Balance
Operating Temperature - 40° C to + 85° C
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD6007
Products Details
VDSL Transformer TD6007
Excellent Longitudinal Balance
Operating Temperature - 40° C to + 85° C
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD6008
Products Details
VDSL Transformer TD6008
Excellent Longitudinal Balance
Operating Temperature - 40° C to + 85° C
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD6009
Products Details
VDSL Transformer TD6009
Ikanos Chip
Operating Temperature - 40° C to + 85° C
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD6010
Products Details
VDSL Transformer TD6010
Ikanos Chip
Operating Temperature - 40° C to + 85° C
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
TD6011
Products Details
VDSL Transformer TD6011
Ikanos Chip
Operating Temperature - 40° C to + 85° C
Per UL1950, EN60950 and IEC950
Product PDF: [Open][Download]
FERRITE CHIP BEADS ARRAY
Products Details
FERRITE CHIP BEADS ARRAY
TCBA3216
Compact SMT package offers higher density of circuits
High impedance over wide frequency range provides
excellent noise suppression
Monolithic design minimizes disturbance from
surrounding circuitry
Suitable for reflow soldering
Operating Temperature: -40°C~+85°C
Impedance: 31Ω - 1200Ω
Product PDF: [Open][Download]
TCBH
Products Details
FERRITE CHIP BEADS
Size: 100505
160808
201209
321609
Operating Temperature: - 40°C ~ +85°C
Impedance@100 MHz: 31Ω -1000Ω
Product PDF: [Open][Download]
TCMP
Products Details
FERRITE CHIP INDUCTOR
Large current low DCR
No cross coupling between inductors due to shielded construction
Good for high density boards
Good solderability and RSH
Ideal for Reflow soldering
Product PDF: [Open][Download]
TL2012C-TL3216C-900ST
Products Details
HIGH FREQUENCY COMMON MODE CHOKES TL2012C-ST/TL3216C-ST
Operating Temperature: 40°C to 85°C
Impedance: 90Ω @ 900 MHz
TL2012C-900ST
Idc: 300 mA
TL3216C-900ST
Idc :370 mA
Product PDF: [Open][Download]
TP1001
Products Details
Common Mode Choke
100kHz - 500 MHz
Quadfilar 1 Amp
Operationg Temperature: -40°C to +85°C
Application:
LAN Power
Product PDF: [Open][Download]
TL3000
Products Details
SELF-LEADED SMT POWER INDUCTOR
Features:
Inductance: 22.1 µH
Inductance@2.6A : 19.8 µH
Frequency range of up to 1MHz
Can be used as a simple inductor，
1:1 coupled inductor or 1:1 transformer
Operating temperature -40 °C to +130°C
Product PDF: [Open][Download]
TL- 4D18
Products Details
SMD SHIELDED POWER INDUCTOR
Current range : 0.2 - 1.72A
Inductance range : 1- 100 µH
DCR : 0.045 -1.73Ω
Features:
Low profile very effective in space-conscious applications.
Low resistance less power loss.
Product PDF: [Open][Download]
TL-5022T
Products Details
SMD SHIELDED INDUCTOR
FEATURES
.Small footprint: 5.0 x 5.2mm
.Low profile: 2.2mm
• Large DC current
• Magnetically shielded
• Operating temperature: – 40°C to +105°C
(Including temperature rise)
Product PDF: [Open][Download]
TLCDR
Products Details
Unshielded Power Inductor
Excellent solderability and heat resistance
Surface mount inductor compact size
Operating and storage temperature range -40°C to +125°C
Applicable to portable telecommunication devices,
portable computers,DC/DC conversion and PDAs
Product PDF: [Open][Download]
TLCDRH5D28
Products Details
Shielded Power Inductors
Features:
Maximum height: 3.0mm
Standard inductor: TLCDRH5D28, TLCDRH5D28R
High Power inductor: TLCDRH5D28R /HP
Inductance range: TLCDRH5D28: 2.5-100 μH
TLCDRH5D28R: 2.5-100 μH
TLCDRH5D28R/HP: 2.2- 47μH
Rated current: TLCDRH5D28: 0.42-2.6A
TLCDRH5D28R: 0.4-2.6A
TLCDRH5D28R/HP: 0.85-3.8A
Product PDF: [Open][Download]
TLCDRH6D28
Products Details
Shielded Power Inductor
Magnetically shielded surface mount
inductor with high current rating
Compact low profile package
Low resistance less power loss
Product PDF: [Open][Download]
TLCDRH104-XXX
Products Details
Shielded Power Inductors
Features:
Ferrite drum core construction
Magnetically shielded SMD with high current rating
Low resistance, lower power loss
Operating Temperature: -40°C to +100°C
Storage temperature: -40°C to +100°C
MSL: 1
Applications:
Ideally used in Notebook computers, LCD TV, DVDs,
Game machines, Set Top Boxes, Projectors etc.
Product PDF: [Open][Download]
TLCDS73-XXX
Products Details
Shielded Power Inductor
Shielded surface mount inductor
High current rating in compact package
Low profile
Low resistance lower power loss
Product PDF: [Open][Download]
TLCDS74-XXX
Products Details
Shielded Power Inductor
Shielded surface mount inductor
High current rating in compact package
Low resistance
Product PDF: [Open][Download]
TL-HSM0402
Products Details
Unshielded Power Inductors
TL-HSM0402/0802/0804/0810/1206A/1206B
Features:
Operating temperature：-25℃～+85℃.
Compact low profile inductor
Low resistance, high current rating
Applications:
DC-DC conversion for Notebook computers,
PDA and hand held Mobile phones
Step up/Step down converters and Flash memory
Product PDF: [Open][Download]
TL-HSM31A - 108
Products Details
Unshielded Power Inductors
TL-HSM31A/31B/32/42/43/52A/52B/53A/53B
TL-HSM54/73/75/104/105/106/108 Series
Product PDF: [Open][Download]
TL-SC73R/ 74R
Products Details
Shielded Power Inductors
Features:
Available on tape and reel for automatic insertion.
Low DC resistance and large permissible DC current.
Inductors can be surface mounted using reflow soldering.
Applications:
Excellent for power line DC-DC conversion application used in
hard disks, notebook computers and other electronic equipment
Product PDF: [Open][Download]
TL-SC103R
Products Details
Shielded Power Inductors
Features:
Magnetically shielded SMD with high current rating.
High inductance/High power inductor.
Operating Temperature: -25 °C ~ 85°C
Applications:
Used in variety of DC-DC converter applications
Product PDF: [Open][Download]
TL-SC124R
Products Details
Shielded Power Inductor
TL-SC124R/SC125R/SC127R Series
Features:
Operating Temperature: -25°C ~ +85°C.
Magnetically shielded SMD with high current rating.
Low resistance minimizes power loss.
Applications:
Excellent for power line DC-DC applications,
used in hard disk, notebook computers
and other electronic equipment.
Product PDF: [Open][Download]
TCBG
Products Details
Chip Beads
These multilayer chip beads produce higher impedance than same sized plug-in beads TCBG series provide substantial EMI, RFI suppression Constructed per EIA standard can easily be picked and placed by standard SMT equipment
Product PDF: [Open][Download]
TX4001
Products Details
25 Watts PoE Transformer
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 125°C
Switching Frequency: 250kHz
Designed to work with Linear Tech LTC4278
Product PDF: [Open][Download]
Shielded Power Inductors TL-1278
Products Details
Shielded Power Inductors TL-1278 SERIES
Footprint: 12.3 * 12.3mm * 8mm
DCR: Low DCR and excellent current handling capability
Ambient temperature: - 40C to +85C with Irms current, +85C to +125C with derated current
Storage temperature: - 40C to +125C
Resistance to soldering heat: Max three 40 second reflows at -260C, parts cooled to room temperature between cycles
Product PDF: [Open][Download]
TJ3002 Gigabit PoE
Products Details
Gigabit Ethernet RJ45 TJ3002
RoHS peak wave solder temperature rating 260°C
Single port connector for PoE applications
High performance for maximun EMI suppression
Operating temperature 0°C to +70°C
Product PDF: [Open][Download]
TL-5040SG-100M
Products Details
.jpg)
SMD Power Inductors TL-5040SG-100M 4.9 x 4.9 x 4.1mm
Electrical Specifications(25°C)
Inductance(Ls)@100KHz,0.1V : 10 uH±20%
Rated Current - Saturation Current : 2300mA
Rated Current - Temperature Rise Current : 2100mA
DC Resistance(20°C) : 0.0728 ? Max
Avg. of DC.Resistance : 0.056 ?
Self-resonant Frequency : 18MHz Min
Operating temperature : -25°C to +120°C
Product PDF: [Open][Download]
TL-GLMC
Products Details
.jpg)
Power Inductor TL-GLMC (7.4 x 6.5 x 3mm)
7.4 x 6.5mm square and 3.0mm height
Low core loss material for highly effcient power supplies
Excellent low heat generating characteristics due to low DCR
Metal composite structure provides compact size and handles higher current
Product PDF: [Open][Download]

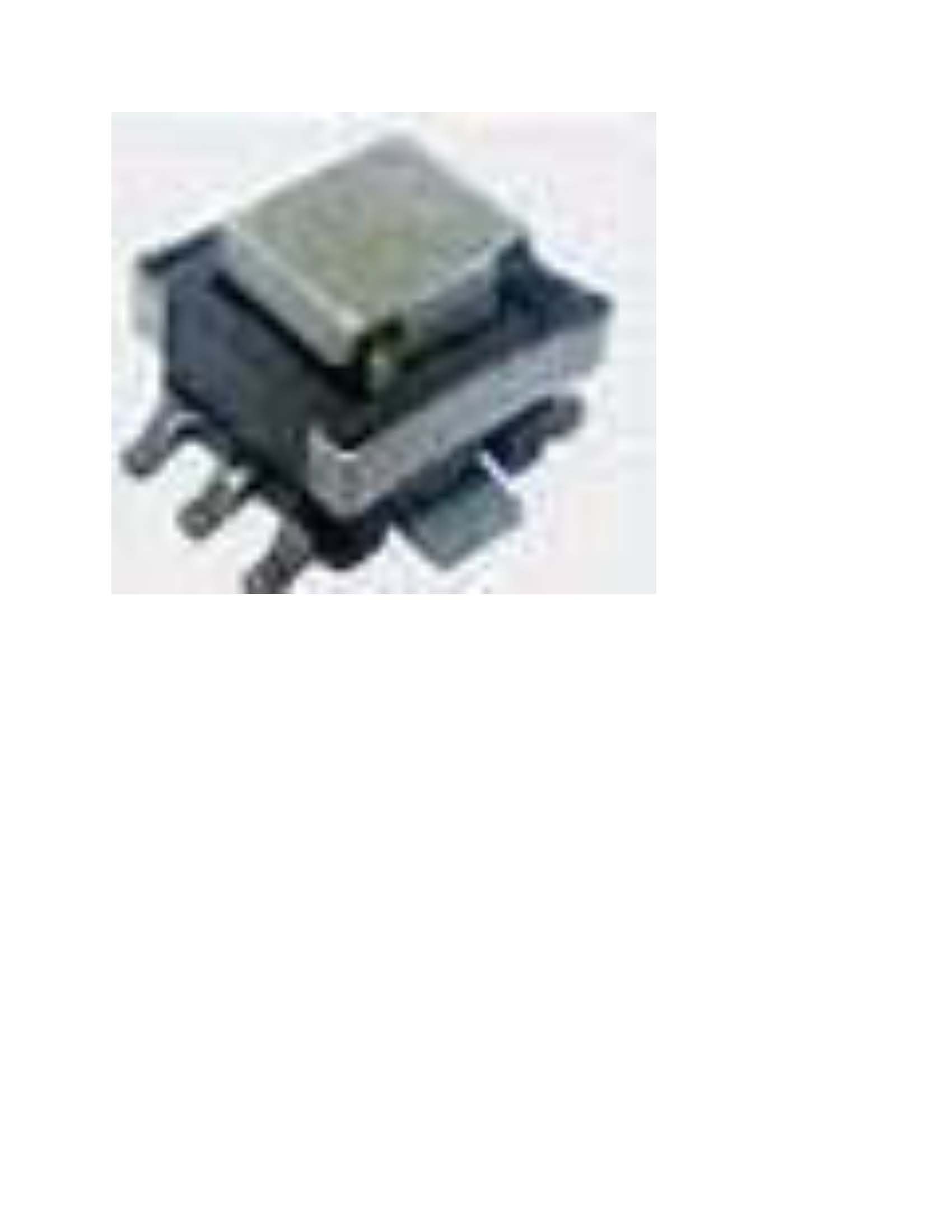

Transformer TX-5000
Products Details
Current Sense Transformer TX-5000 (8.13 x 8.00 x 5.30mm)
Electrical Specification(25°C)
1. Turns Ratio:
Pri : Sec = 1 : 100 ± 2%
2. Inductance(Lp)@100KHz,0.1Vrms:
Secondary : 2.0 mH Min
3. DCR@20°C:
Primary : 0.0007 Max
Secondary : 5.50 Max
4. Sensed current Iin(A) : 10 A
Primary current of 10 A causes approximately
25°C temperature rise from 25°C ambient.
Higher current causes a greater temperature rise
(see temperature rise vs current curve)
5. Terminating resistance RT: 10Ω
Terminating resistance(RT) value is based
on 1 Volt output with 10 Amps flowing through
the primary. Varying terminating resistance
increases or decreases output Voltage/Ampere according
to the following equation:RT(Ohns)=Vout x Nsec/Iin
6. Volt-time product(V- sec) : 81
Maximum volt-time product for the secondary7. Hi-Pot :
500V AC, 1.0mA, 1Sec : Pri to Sec
8. Operating temperature range : -40°C to +125°C
9. Storage temperature range : -40°C to +125°C
Product PDF: [Open][Download]
TX40xx 30W Flyback PoE+
Products Details
Features:
Designed for Flyback PoE applications up to 30 Watts
Designed to meet IEE 802.3at (2009 Standrad)
Low Profile
Class B Insulation System
Operating temperature:- 40°C to +85°C
Storage Temperature: -40° C to +125°C
Isolation: 1500Vrms
Switching Frequency: 250kHz
Product PDF: [Open][Download]
TX5001 90W PoE Forward
Products Details
Features:
90W PoE Synchronous Forward Transformer
Designed to work with LTC3725
Class B Insulation System
Switching Frequency: 200kHz
Peak Switching Current: 7A
Duty Cycle: 65% Max
Operating temperature:- 40°C to +85°C
Storage Temperature: -40° C to +125°C
Product PDF: [Open][Download]
TLIFJ252012B
Products Details
Molded Power Inductor
Surface mount inductor
High current rating in compact package
Low resistance
Product PDF: [Open][Download]
TL0806
Products Details
Shielded Chip Inductor
Magnetically shielded surface mount inductor
High current rating in compact package
Low resistance
Product PDF: [Open][Download]
TLNMH0603P
Products Details
TX4006 25W PoE Flyback
Products Details
Designed for LT3575 and LT3748
Switching Frequency 250 kHz
Operating Temperature -40°C ~ +125°C
Class B Insulation
25W PoE application
Product PDF: [Open][Download]
TJ3009 Gigabit Tab Up
Products Details
.jpg)
TL3232SG11
Products Details
1000W Planar Boost Inductor TX6003
Products Details
1000W Planar Output AC Inductor TX6004
Products Details
1000W Planar Transformer TX6005
Products Details
750W Planar Transformer TX6006
Products Details
TX6010 Planar Inductor
Products Details

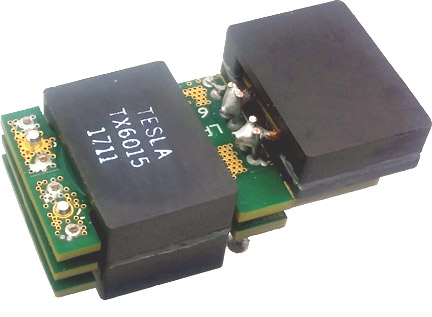

500W Planar Transformer TX6015
Products Details
TLGQW1507-500K Rev.1
Products Details
.jpg)
